Technical Specifications

Smart

Smartbar features

Voice control, fingerprint start, LED dot-matrix display, haptic interaction, bluetooth music, built-in navigation, GPS tracking, OTA upgrade

Connectivity

Connect Service with 4G, Bluetooth & WiFi

IoT sensors

Accelerometer, gyroscope, torque

App

iOS & Android

Connect Service

1 year included*

Power

Motor

Customized rear hub, 36 V 250 W, 45 N⋅m

Speed modes

Pedal, Eco, Comfort, Sport, Turbo

Top speed (assisted)

25 km/h

Range

50~120 km

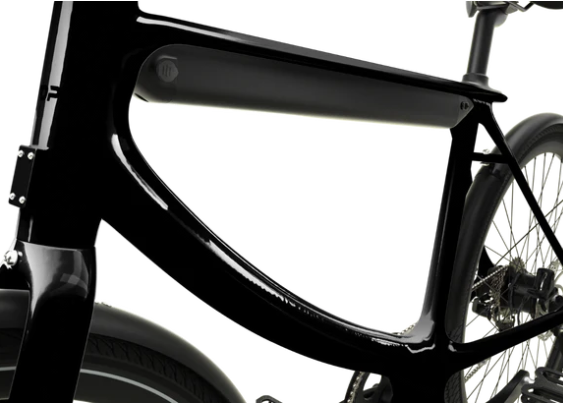

Removable battery

352.8 Wh Samsung Li-ion, 3-hr quick charge

General

Weight

21 kg

Load-bearing capacity

130 kg

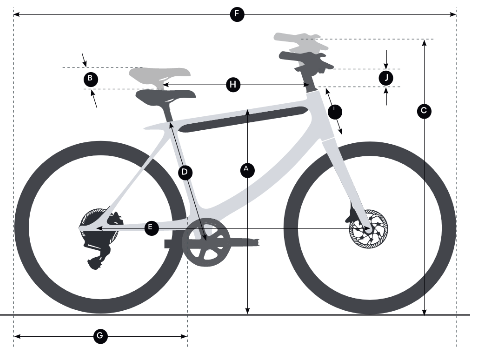

Size

Chord: 170 cm – 195 cm

Chord X: 160 cm – 185 cm

Body material

6061 aluminum with liquid forging technology.

Brakes

TEKTRO hydraulic disc brakes

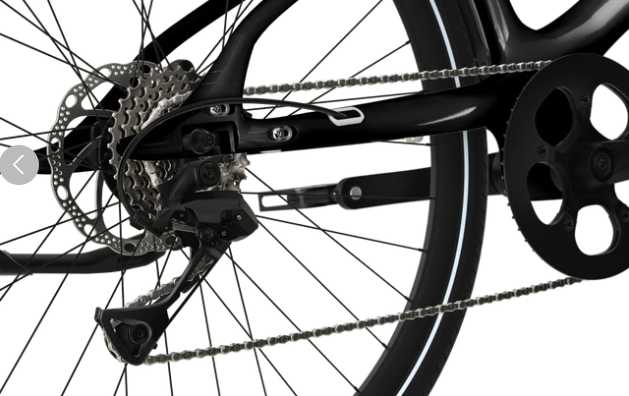

Gearing

8-Speed Shimano rear derailleur

Integrated lights

StVZO headlight; rear light

Wheels

700C (ISO 622 mm BSD), inner rim 19 mm

Tires

CST C1720, 700 x 42C with reflective strips

*This service will be automatically activated once the bike is activated and bound to your account. We provide free access in the first year, with the following terms to be renewed by subscription to this service. A code will be sent to your email which can be used to renew the service in our App.
